![[field:title/]](http://www.cncforgingpress.com/uploads/190823/1-1ZR3104644L6.jpg)

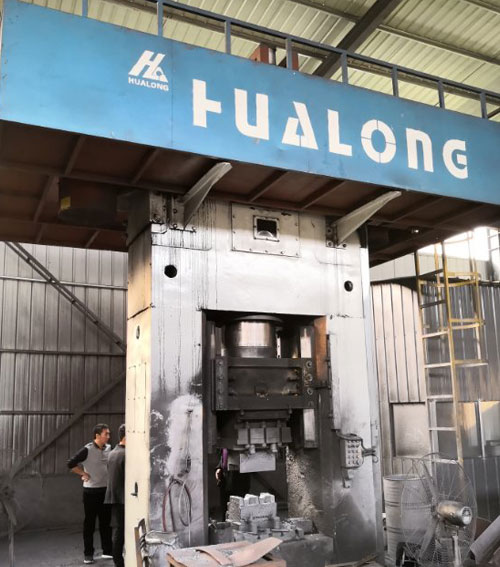

800 ton forging press machine
Precise control of energy, fast response time:Pressure energy preset, accurate and precise pressure, servo motor direct drive, no need for clutch reaction time, fast response time.
Static Pressure,Single/ Double Motor Driven.Fast forming speed, extend the life of the mould of the forging press machine.
Servo motor drive, simple structure, fewer parts, low maintenance and maintenance costs.
The energy process can be controlled easily and has a wide range of forging piece applications.Low noise, low vibration, stamping molding, high pressure energy, high degree of automation, can realize unmanned production.
Product Structure
Product Introduce

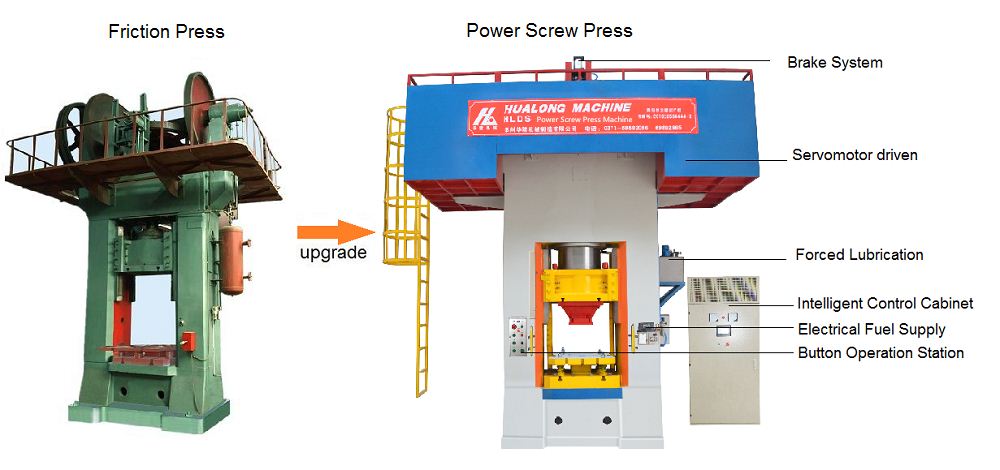

As the upgrade alternatives to friction forging press,Haloong HLDS series forging press machine were Directly driven by servomotor. Energy loss only during blowing and forming whether non-consumption when pick out forging pieces, clean die. One button operation for anyone could get it at such short time.Fully automatic digitization simulate human blow process.Static Pressure type press features

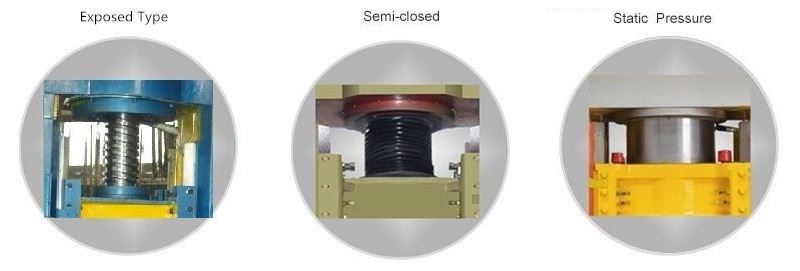

The advantage of static pressure type forging press is its static pressure screw-nuts and the static pressure bearing.And all these parts are designed to be in a closed system.When screw rotates, the nut will drive the slide block to move up and down.
A forced lubricating system will feed the lubricate oil into the closed screw-not system through special pipeline,and form an oil screen between each touching parts to reduce the parts friction when press works.The lubricate oil coming out form the closed screw-nut system will be pumped back to the filter system to be filtered,and then will be injected into screw-nut system again. This whole system greatly reduces the wear and tear of the parts and extends the machine service life by two times then common type press.
Additionally, this type of static pressure forging press is nice in appearance, cost-efficient in power consumption and stable in performance.
Product Parameter
| Model |
Nominal Pressure (KN/T) |
Permissible Capacity (KN) |
Stroke Length (mm) |
Stroke No.s (min-1) |
Min. Shut Height (mm) |
Worktable Size (mm) |
Worktable plate thickness (mm) |
Kinetic Energy(JK) |
|---|---|---|---|---|---|---|---|---|
| HLDS-800F | 8000 | 12500 | 520 | 26 | 600 | 900*800 | 160 | 120 |
